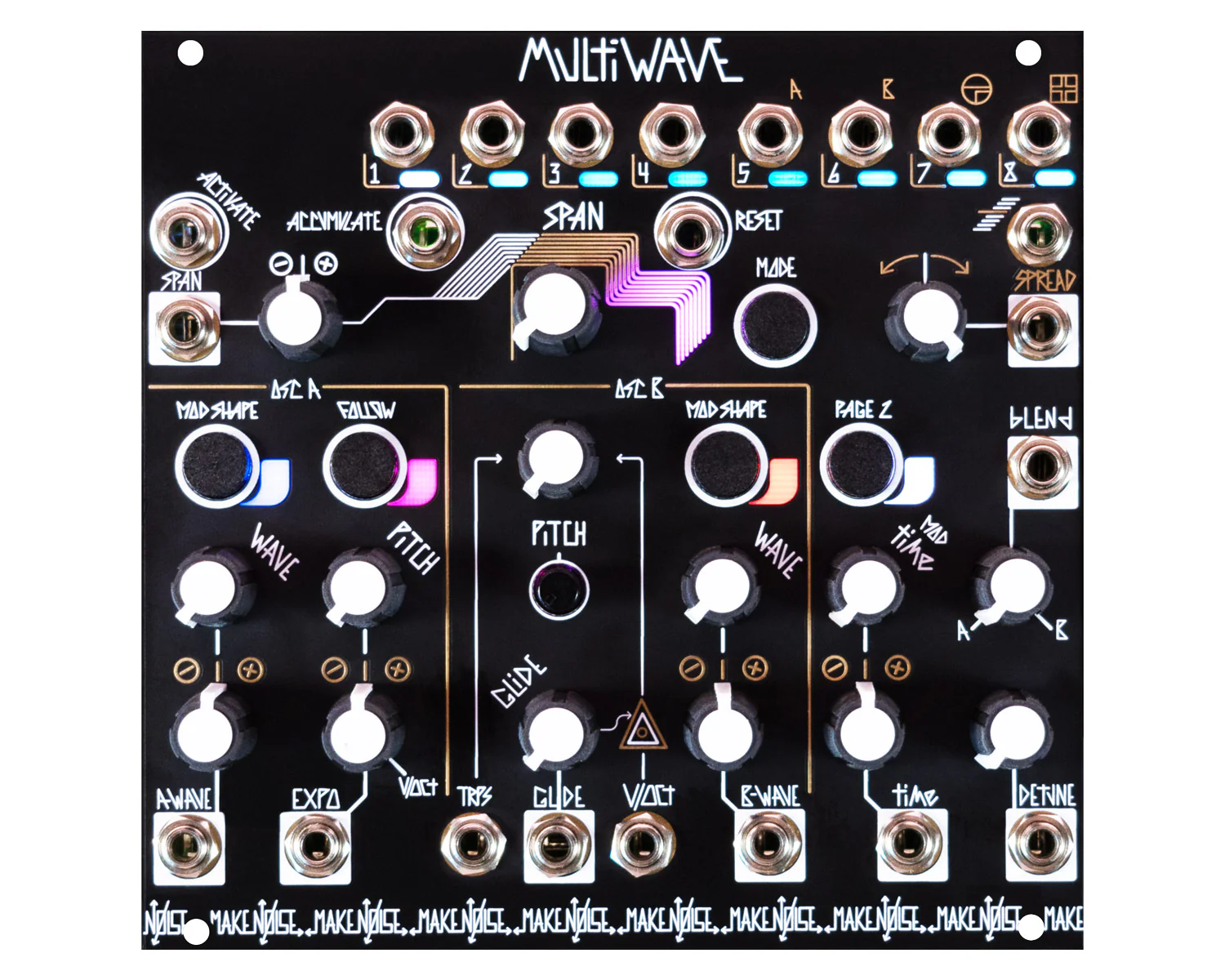

Make Noise MultiWAVE Eight Channel Dual Wavetable Oscillator
MultiWAVE is an 8-channel dual-wavetable oscillator designed for Eurorack and the New Universal Synthesizer System. One shared control set drives eight independent outputs, each housing two wavetables (Osc A and Osc B) with their own frequency, modulation and position settings. An onboard output header allows direct pre-patched routing to two QXG modules, and when paired with PoliMATHS it forms the 8-channel hybrid polysynth core of the NUSS system.
Features
- 8-channel dual wavetable oscillator with a single set of controls
- Sequence A and B oscillators (per channel) independently or together via 4 follow modes
- Generate polyphonic activations from monophonic sequences using Modulation Dissemination, Span modes, Spread, and Accumulate.
- Variable timbre per channel via Spread and Modulation Dissemination
- Independent v/o inputs per oscillator and global transpose v/o input
- Built-in polyphonic quantizer
- Modulatable polyphonic detune, and glide.
- Works as a Harmonic Oscillator with detune turned fully clock wise
- Modulate wavetables using built-in MultiMod LFO
- Independent modulation depth and shape per oscillator.
- Modulation Time and depth variable per voice via spread and modulation dissemination
- Ships with custom Make Noise wavetables developed from Make Noise modules
- Smooth interpolation between waveforms
- Compatible with Waveedit format wavetables
- Each wavetable contains 64 waves
- Capable of storing 8 banks of 8 wavetables.
- Activate channels in multiple voltage-controllable Span modes
- In arbitrary order using Channel Index
- Sequentially with variable channel count step in Round
- Via variable per channel clock divisions using Parallel
- Oscillator Core of the New Universal Synthesizer System
- Designed for seamless use with PoliMATHS, QXG, and future N.U.S.S. modules
Video: youtube.com/watch?v=qa1-GdH0M_M&embeds_referring_euri=https%3A%2F%2Fwww.makenoisemusic.com%2F&source_ve_path=Mjg2NjY
Product Specs
- Item Number: 39943
- Make: Make Noise
- Model: MultiWAVE
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Oscillator
- Made In: United States
- MPN: MW
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 26 HP 43 mm deep
- Power*: 250 mA +12V 5 mA -12V ? mA 5V
* User contributed details
