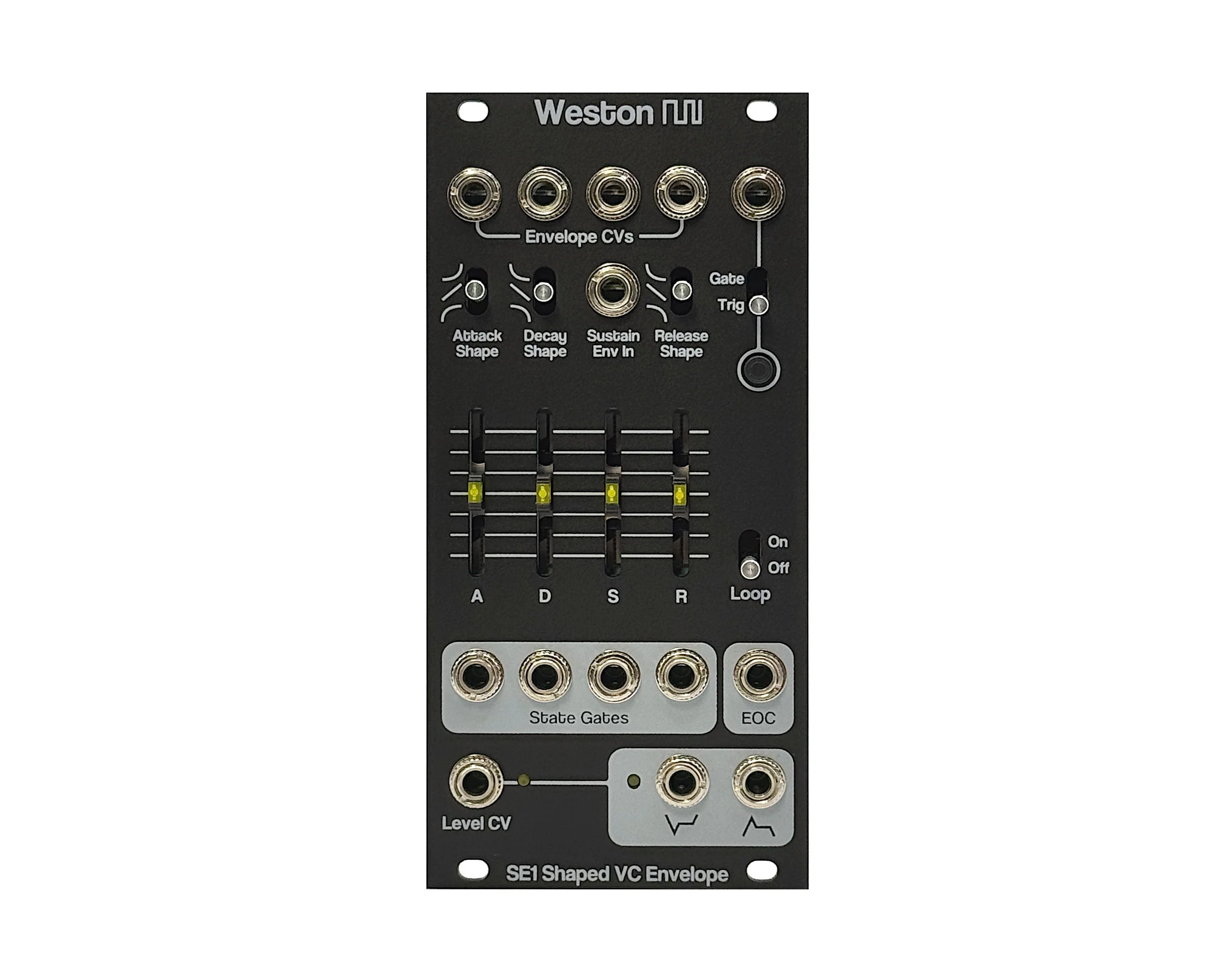

Weston Precision Audio SE1 Shaped VC Envelope

SE1 is an analog ADSR envelope-generating module in Eurorack format. It generates a standard Attack/Decay/Sustain/Release type envelope with a simple gate signal. Unlike many ADSR modules, SE1 allows the time/voltage function of each stage A/D/R to be selected independently between Logarithmic, Linear, or Exponential, allowing unique envelope shapes.

Features

• Voltage-controllable ADSR envelope
• Attack, Decay, Sustain, and Release sliders
• CV inputs for all stages
• Selectable shape modes for A,D, and R stages
• Sustain Envelope input
• Gate and Trigger modes
• Looping mode
• State outputs for all stages—high when active
• End-of-Cycle gate output
• Positive and inverted CV outputs
• Global Level CV input

Specs

• 12HP module size, 25mm Deep
• Power: 70mA +12V / 35mA -12V

Video: https://youtu.be/mywlBySrDD0

Product Specs

• Item Number: 36894
• Make: Weston Precision Audio
• Model: SE1
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Envelope Generator LFO
• Made In: United States
• MPN: WPA-10193
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 12 HP 33 mm deep
• Power: 70 mA +12V 35 mA -12V 0 mA 5V
