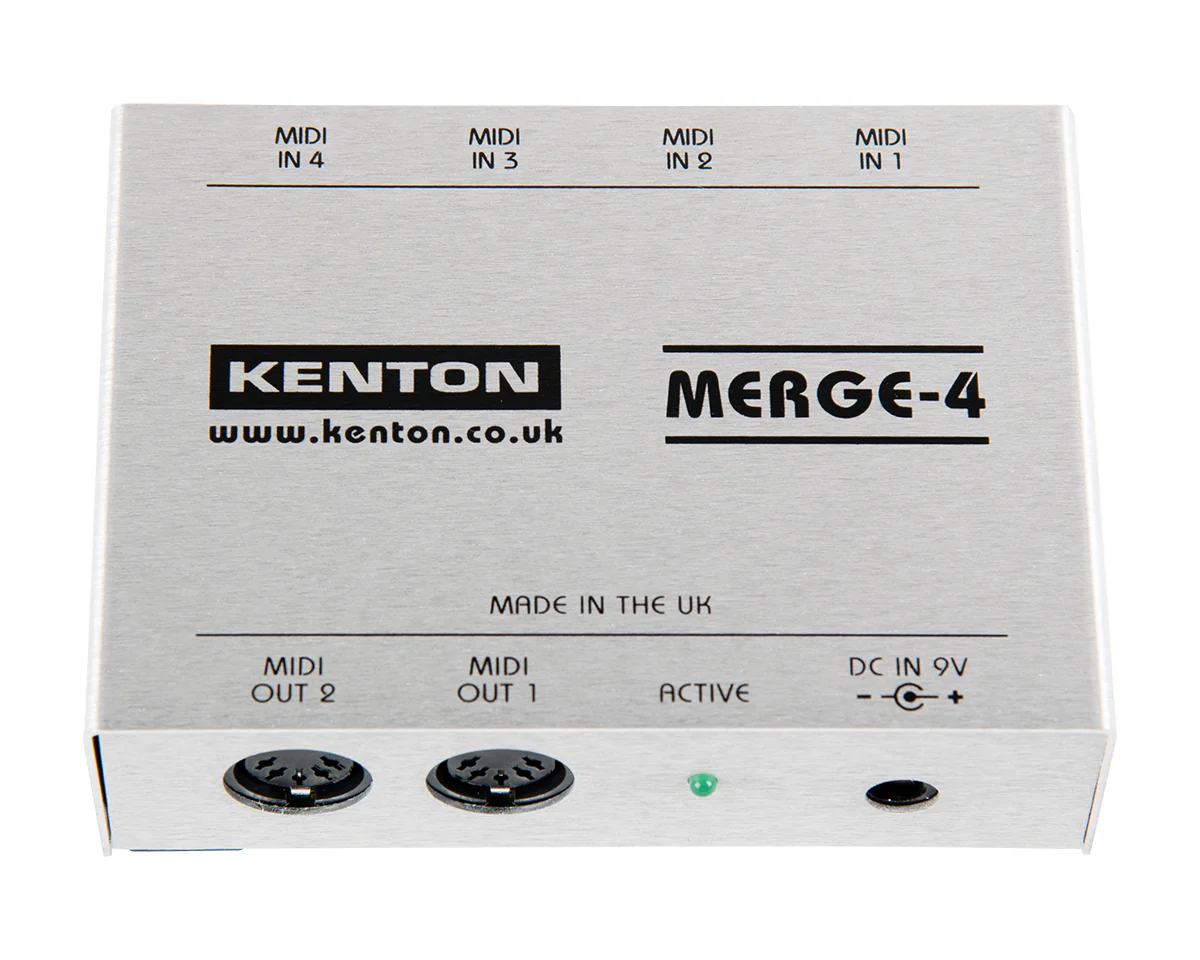

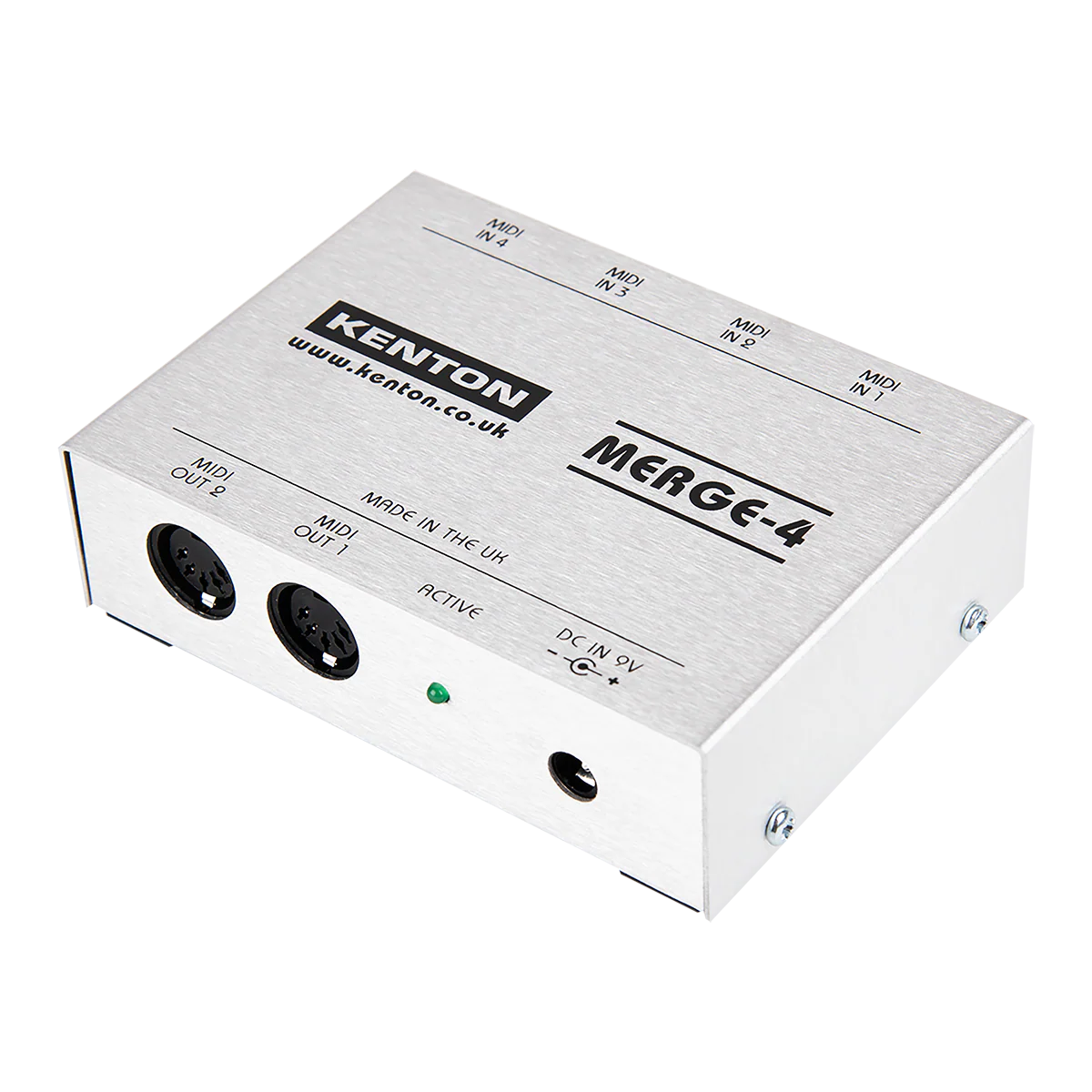

Kenton Merge 4 - 4 MIDI Inputs to 2 MIDI Outputs

The Kenton Merge 4 4 In to 2 Out Merge Box allows you to connect four separate MIDI sources, and combine them all into a single MIDI data stream. This enables you to connect four MIDI controllers or keyboards, and merge all their data including MIDI clock, MIDI time code, and SysEx.

Features.

• Power: 9V DC (regulated or unregulated) – never apply more than 12V (never use an unregulated supply greater than 9V as
• unregulated supplies typically give a higher output than shown)
• Dimensions: 110 x 80 x 32 mm
• Weight: 150g (excluding power supply)
• MIDI: 4 x In, 2 x Out (both deliver the same data)
• Power Supply: 9V switch mode power supply supplied with unit.
• Other: 4 x opto isolated MIDI IN
• 2 x MIDI OUT (both carry the same MIDI data
• DC power input jack 2.1mm (centre +ve)
• Power indicator light
• Solid metal chassis

For any further information please refer to the manual

Includes multi-region power supply.

Product Specs

• Item Number: 20424
• Make: Kenton
• Model: Merge 4 - 4 MIDI IN to 2 OUT
• Condition: Brand New
• Finish: Silver
• Categories: keyboards-and-synths ⇒ keyboard-midi-controllers
• Made In: United Kingdom
• MPN: KTM4
• EAN: 5060491450857
