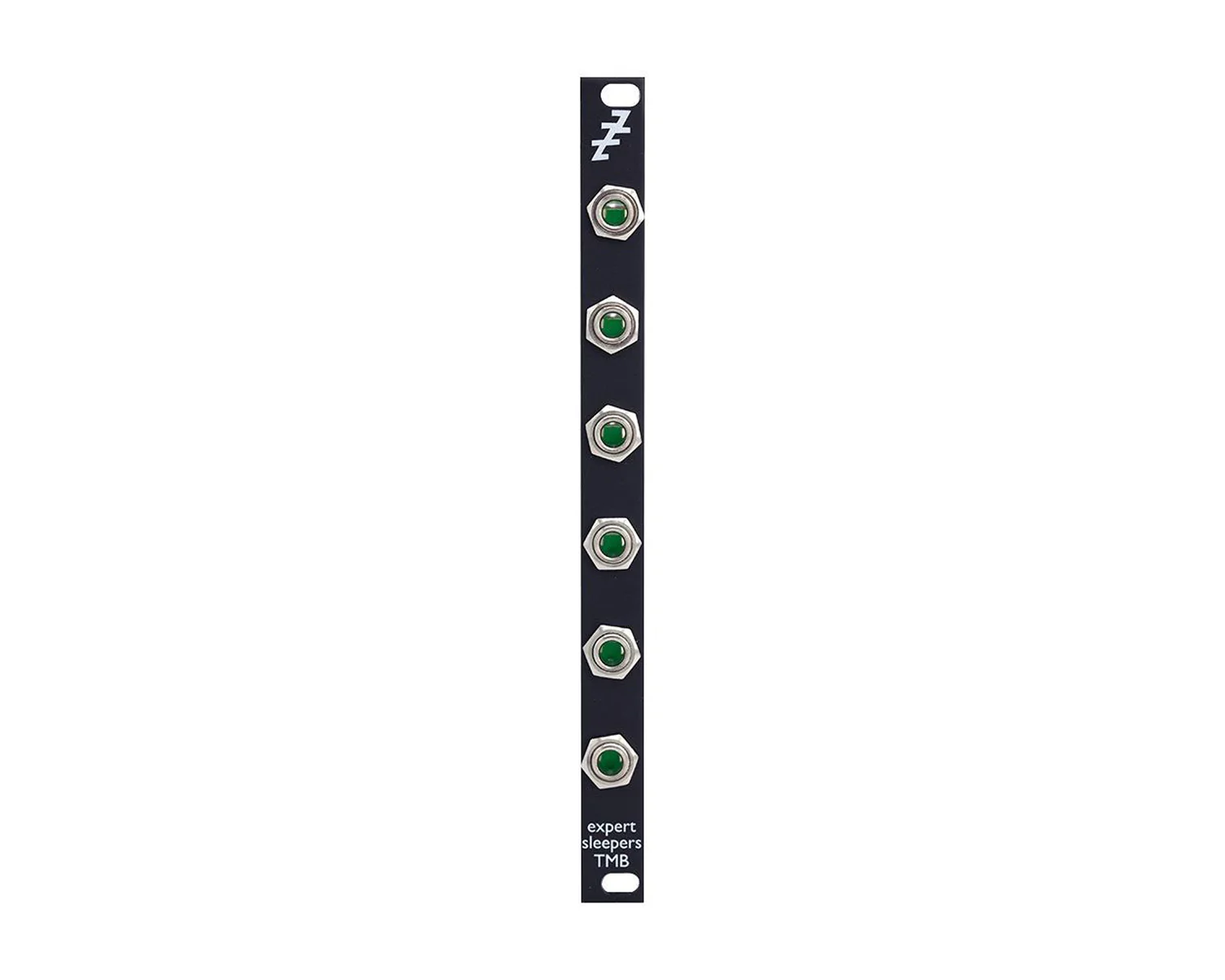

Expert Sleepers TMB Tiny MIDI Breakout
The Tiny MIDI breakout provides 3.5mm TRS MIDI connectors for compatible modules with breakout headers - the disting mk4, disting EX, ES-9, General CV, and FH-2. The six sockets can be shared amongst modules as needed. The module is entirely passive, and can be wired up for Type A or Type B 3.5mm MIDI.
Specifications:
- The Tiny MIDI breakout's specifications are as follows:
- Panel width: 2HP
- Module depth: 30mm (including cables)
- Current draw: none
Connection Examples
The examples below show the breakout connected with the uppermost socket as the MIDI input and the one below that as the MIDI output, wired for a Type A 3.5mm MIDI cable. Includes one four-way ribbon cable.
Product Specs
- Item Number: 20112
- Make: Expert Sleepers
- Model: TMB Tiny MIDI Breakout
- Condition: Brand New
- Finish: Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Expander MIDI Utility
- Made In: United Kingdom
- MPN: EXPE03
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 2 HP 30 mm deep
- Power*: Module does not draw current
* User contributed details
Original: $63.53
-65%$63.53
