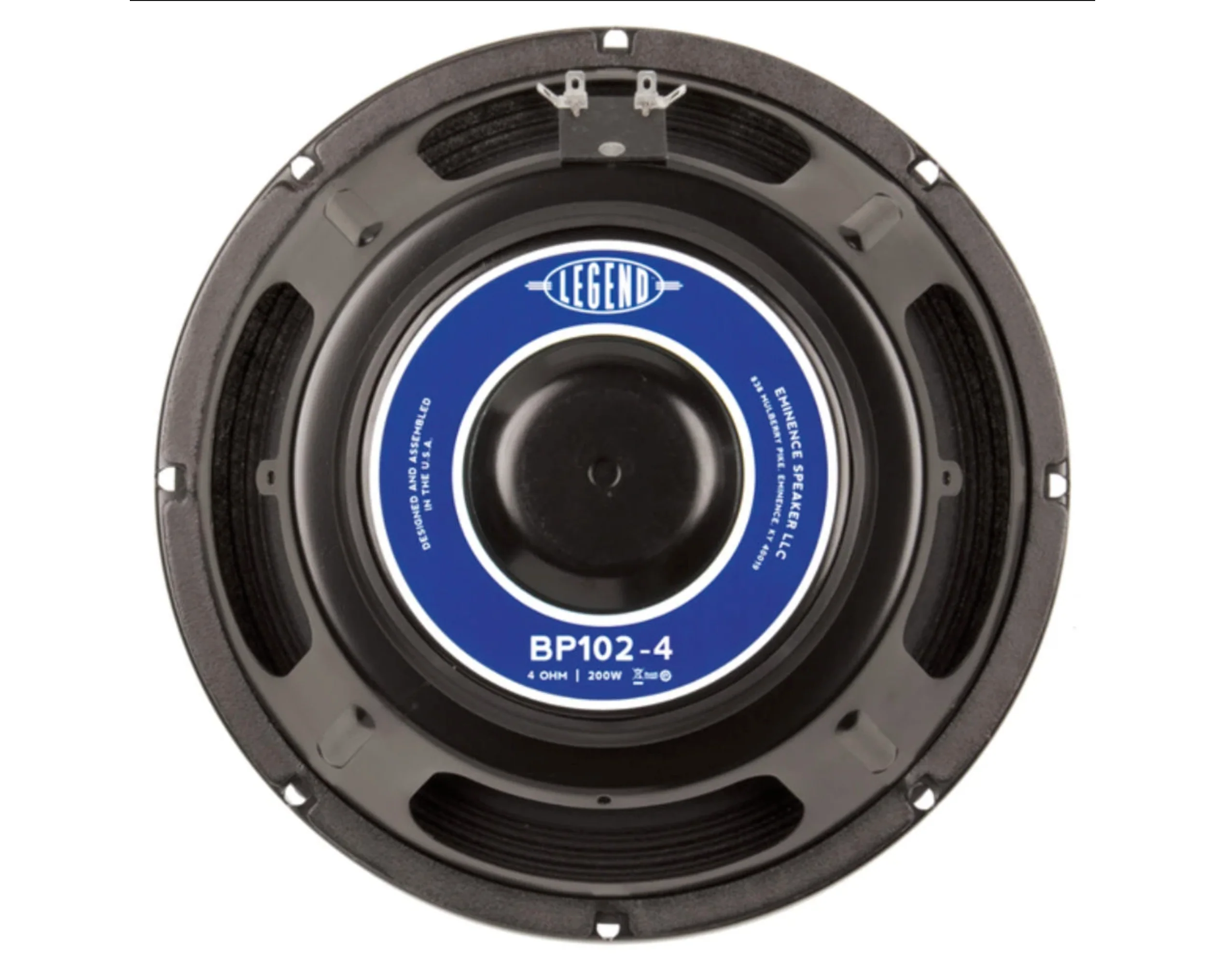

Eminence Legend 10" 200W 4Ω Bass Speaker

The Eminence Legend 200 Watt, 4 Ohm bass guitar 10" speaker is recommended for professional bass guitar applications in a sealed or vented enclosure. Works well in single or multi driver designs.
Features a truncated cast frame chassis for tight fitting in your 2x, 4x and 8x10 cabinet.

SPECIFICATIONS

• Nominal Basket Diameter: 10", 254 mm
• Nominal Impedance: 4 Ω
• Watts: 200 W
• Resonance: 55 Hz
• Usable Frequency Range: 54 Hz - 3 kHz
• Sensitivity: 94.4 dB
• Magnet Weight: 38 oz.
• Gap Height: 0.312", 7.9 mm
• Voice Coil Diameter: 2", 51 mm

MOUNTING INFORMATION

• Recommended Enclosure Volume: Sealed: N/a Vented: Acceptable
• Driver Volume Displaced: 0.043 cu.ft. / 1.22 liters
• Overall Diameter: 10.5", 266.7 mm
• Baffle Hole Diameter: 9.01", 228.9 mm
• Front Sealing Gasket: Yes
• Rear Sealing Gasket: Yes
• Mounting Holes Diameter: 0.3", 7.6mm
• Mounting Holes B.C.D: 9.71", 246.5mm
• Depth: 4.44", 112.8 mm
• Net Weight: 8.8 lbs, 3.99 kg
• Shipping Weight 9.7 lbs, 4.4 kgs.

MATERIALS OF CONSTRUCTION

• Coil Construction: Copper voice coil
• Coil Former: Kapton former
• Magnet Composition: 38 oz. Ferrite magnet
• Core Details: Vented and extended core
• Basket Materials: Die-cast aluminum basket
• Cone Composition: Paper cone
• Cone Edge Composition: Cloth cone edge
• Dust Cap Composition: Treated paper dust cap

Product Specs

• Item Number: 16209
• Make: Eminence
• Model: Legend 10" 200W 4Ω Bass Speaker
• Condition: Brand New
• Finish: Black
• Categories: parts ⇒ replacement-speakers
• Made In: United States
• MPN: LEGENDBP102-4
