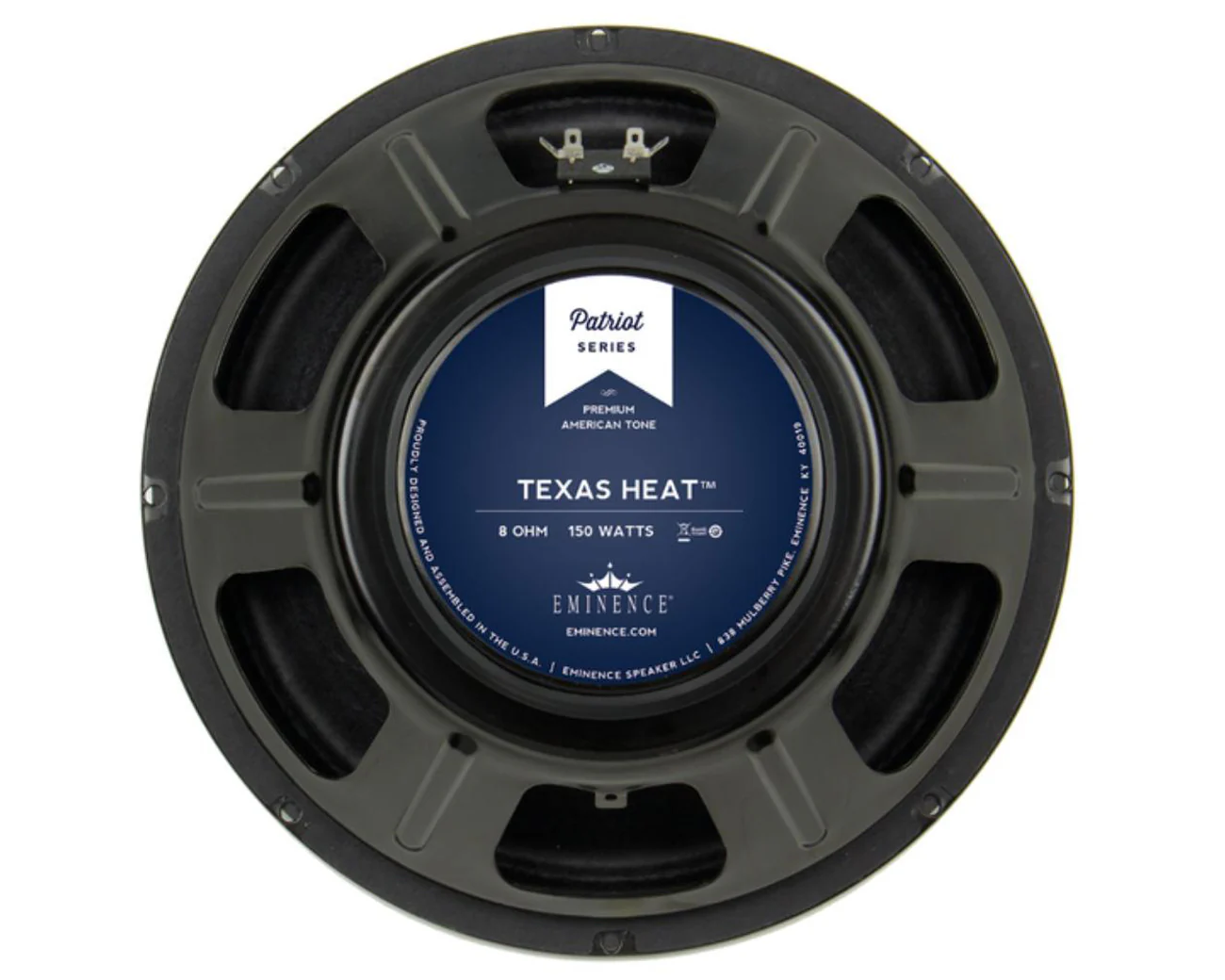

The Eminence Texas Heat 150 Watt, 8 Ohm guitar speaker delivers a warm, fat tone with top end bite and clarity to cut through a mix while maintaining a rich, bluesy tone. Very touch-sensitive.

SPECIFICATIONS

• Nominal Basket Diameter: 12", 305 mm
• Nominal Impedance: 8 Ω
• Watts: 150 W
• Resonance: 79 Hz
• Usable Frequency Range: 70 Hz - 4.7 kHz
• Sensitivity: 99.4 dB
• Magnet Weight: 38 oz.
• Gap Height: 0.312", 7.9 mm
• Voice Coil Diameter: 2", 51 mm

MOUNTING INFORMATION

• Recommended Enclosure Volume: Sealed: Acceptable, Vented: Acceptable
• Driver Volume Displaced: 0.071 cu.ft. / 2 liters
• Overall Diameter: 12.03", 305.6 mm
• Baffle Hole Diameter: 11.07", 281.2 mm
• Front Sealing Gasket: Yes
• Rear Sealing Gasket: Yes
• Mounting Holes Diameter: 0.25", 6.4mm
• Mounting Holes B.C.D: 11.59", 294.4mm
• Depth: 5.1", 129.5 mm
• Net Weight: 8.3 lbs, 3.76 kg
• Shipping Weight 10 lbs, 4.54 kgs

MATERIALS OF CONSTRUCTION

• Coil Construction: Copper voice coil
• Coil Former: Polyimide former
• Magnet Composition: Ferrite magnet
• Core Details: Non-vented core

Basket Materials Pressed steel basket Cone Composition Paper cone Cone Edge Composition Paper cone edge Dust Cap Composition Zurette dust cap

Product Specs

• Item Number: 16204
• Make: Eminence
• Model: Texas Heat 12" 150W 8Ω
• Condition: Brand New
• Finish: Black
• Categories: parts ⇒ replacement-speakers
• Made In: United States
• MPN: TEXASHEAT
• UPC: 876358001095
