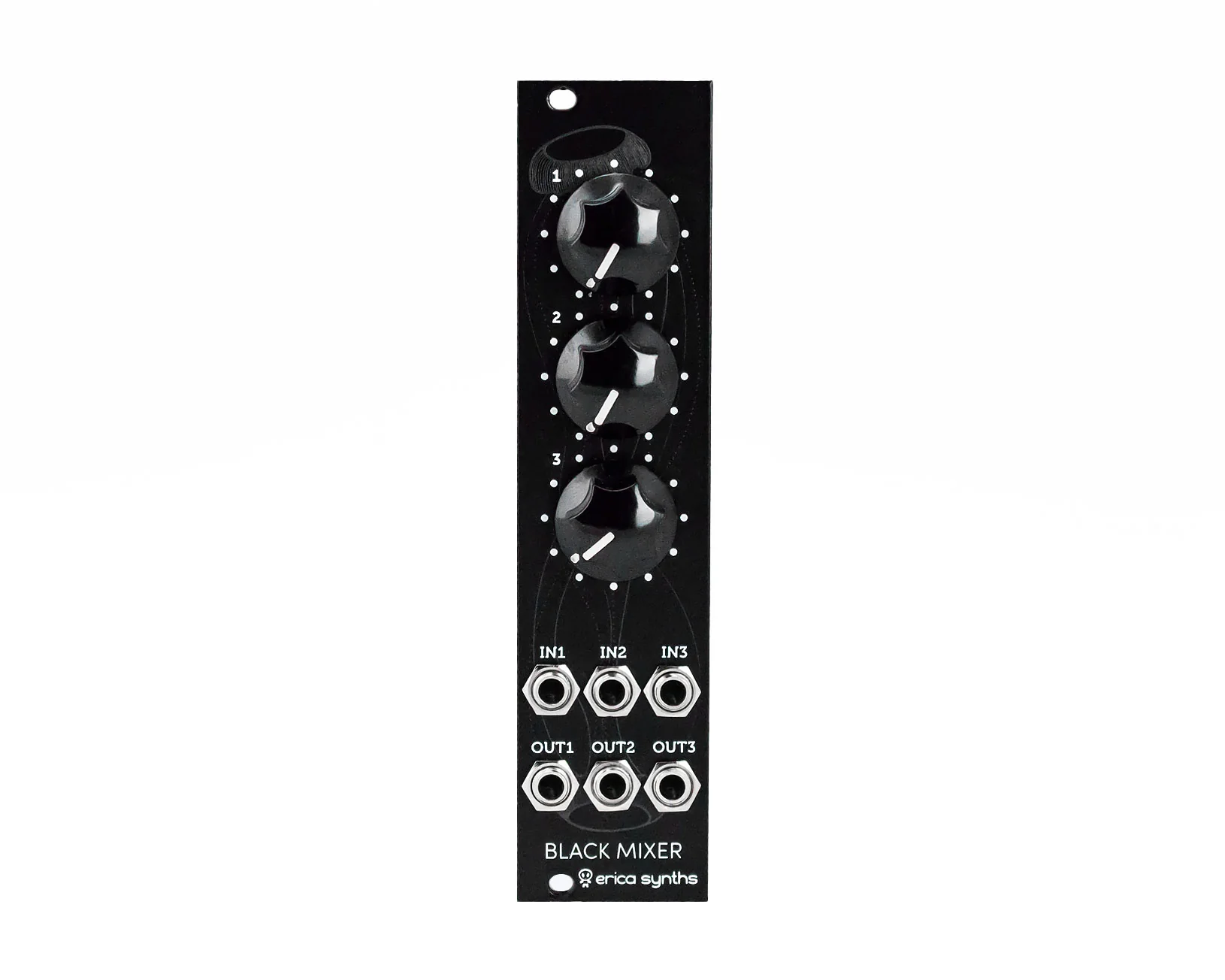

Erica Synths Black Mixer v2

Erica Synths Black Mixer is a compact, high quality audio mixer with a bonus feature – three buffered outputs.

Features:

• 3 AC coupled inputs
• 3 buffered outputs
• Input and output protection
• Protection against reverse PSU connection

The buffered outputs allow you to send signals to several signal processing devices simultaneously, for example, split the output signal to LP and HP VCFs and create advanced bandpass and notch filters.

Erica Black series are high-end modules with unique functionality. Only the highest quality components are used and all inputs and outputs are protected against undesired overvoltage. When designing the Black Series, we did not economise on the module width, we put design and usability first. Big knobs are assigned to functions that make difference in sound. Together the Erica Black series are a range of modules that make an entire synthesizer.

Technical specifications:

• Max input level -10V – +10V
• Mixer gain 1
• Power consumption +8mA, -8mA
• Module width 6HP
• Module depth 25mm

Product Specs

• Item Number: 14967
• Make: Erica Synths
• Model: Black Mixer v2
• Condition: Brand New
• Finish: Black
• Categories: keyboards-and-synths ⇒ eurorack
• Function: Mixer
• Made In: Latvia
• MPN: ES-BMv2
• EAN: 4751030820194
• Modular Grid: Eurorack ⓘ ＋
• Dimensions: 6 HP 25 mm deep
• Power: 8 mA +12V 8 mA -12V ? mA 5V
