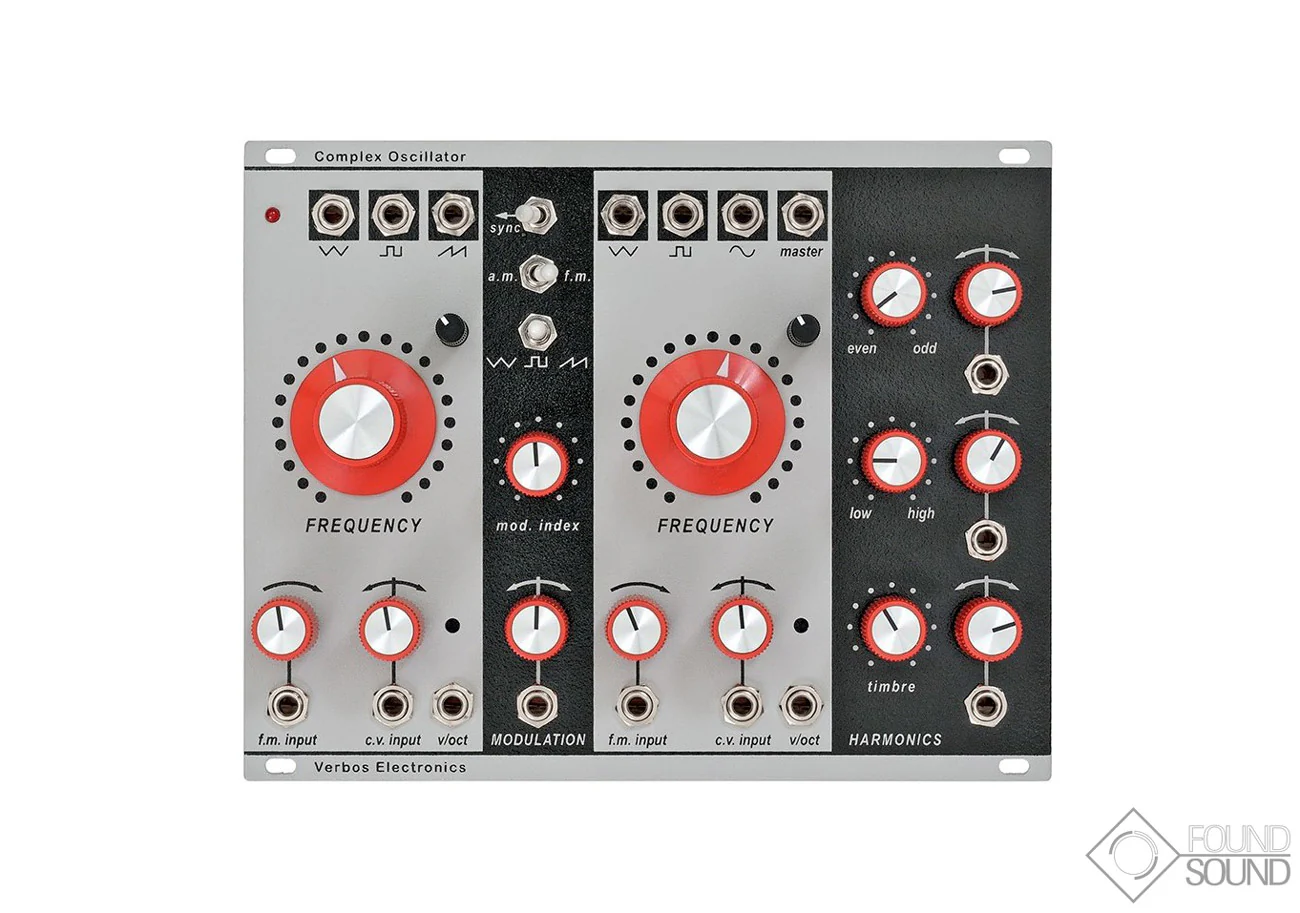

Verbos Electronics Complex Oscillator
The Verbos Electronics Complex Oscillator is configured as a master oscillator with an voltage controlled waveshaper and a modulation oscillator that can be used for FM or AM for classic West Coast synthesis techniques.
The waveshape of the modulation can be set to triangle, square or saw, each with a dedicated output. Modulation amount can be voltage controlled with a reversing attenuator on the CV input.
The master oscillator has dedicated outputs for triangle, square and sine waves. The master output can blend from sine to square to saw to folded sine all from voltage control with reversing attenuators on all of the CV inputs.
The oscillators are analog triangle cores with discrete transistor exponential converters. Each has inputs for linear and exponential FM. Both have 1 volt/octave trimmed CV inputs as well.
32HP
Video: https://youtu.be/sAVJtEzyaYk
Product Specs
- Item Number: 10212
- Make: Verbos Electronics
- Model: Complex Oscillator
- Condition: Brand New
- Finish: Grey & Black
- Categories: keyboards-and-synths ⇒ eurorack
- Function: Oscillator Dual/Stereo Waveshaper
- Made In: Germany
- MPN: VECO
- Modular Grid: Eurorack ⓘ ＋
- Dimensions*: 32 HP 26 mm deep
- Power*: 70 mA +12V 50 mA -12V 0 mA 5V
* User contributed details
