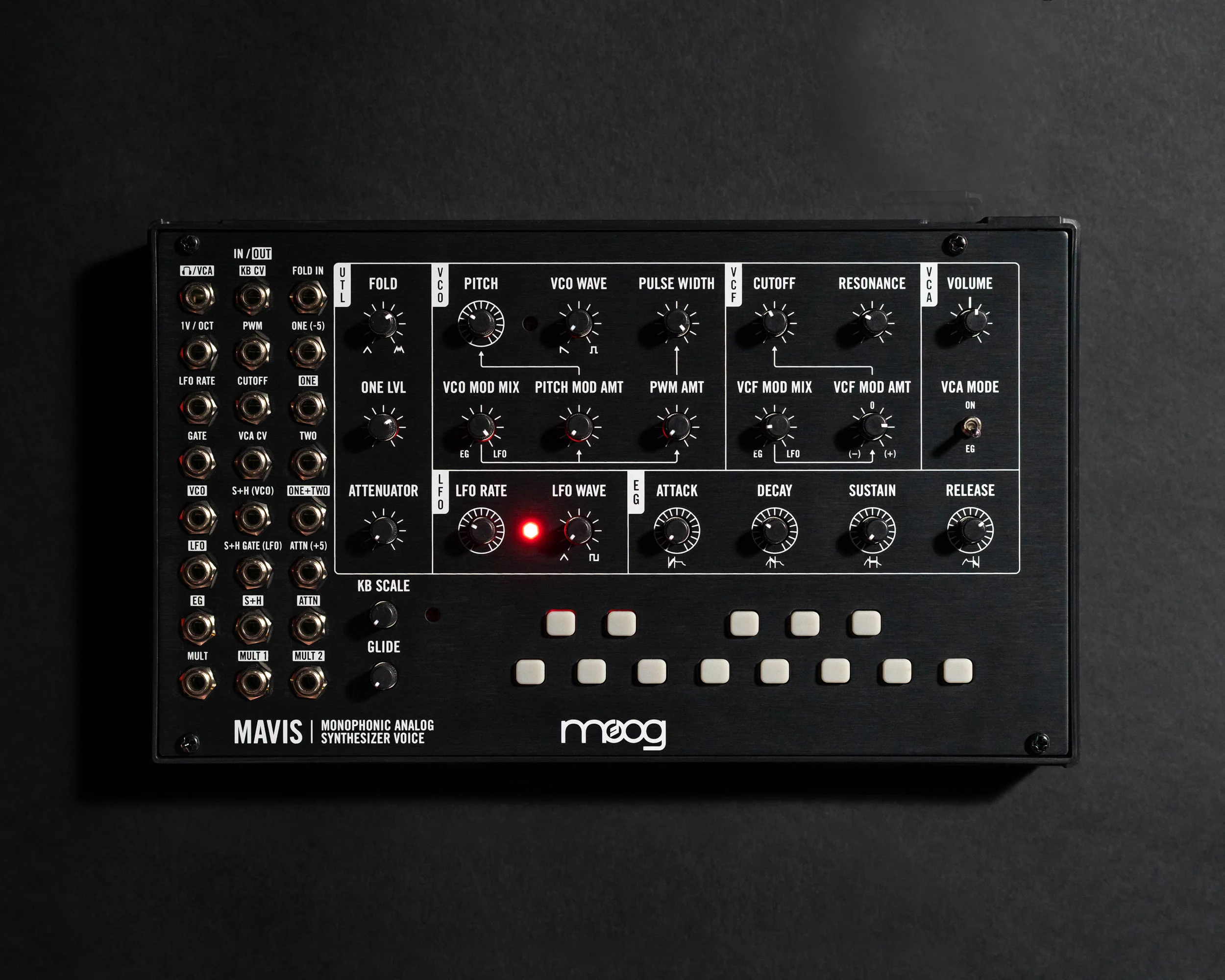

Moog’s New Budget-Friendly Semi-Modular Analogue Synthesizer Mavis is a powerful, low-cost, build-it-yourself semi-modular analog synthesizer that invites creatives to begin their journey into the Moog ecosystem or expand their existing synth setup. With the legendary Moog sound and quality, Mavis delivers serious value in the form of an affordable, compact musical machine.

Mavis delivers the huge depth of sound Moog is known for in a compact, feature-packed instrument that is also compatible with any Eurorack system. On its own, Mavis is an expressive and inspiring Analogue synthesizer with patchable modular utilities and unmistakable Moog sound and quality. When removed from its enclosure, the instrument becomes a 24-point CV-controllable module (44HP) ready to be installed into any Eurorack setup or Moog semi-modular system. Perfect for first-time users and established synthesists alike, Mavis’s semi-modular design and one-octave keyboard allow for immediate musical exploration without the need for additional equipment (except for a speaker or headphones).

Operate standalone or as 44hp Eurorack module
Analogue Voltage Controlled Oscillator (Mixable Saw/Square)
Analogue –24dB Moog Low Pass Ladder Filter
4-stage Analog EG (Envelope Generator)
Diode Wavefolder
Analogue LFO (Mixable Triangle / Square)
Pulse Width Modulation
Modular Utilities (Attenuators, Offsets, Mults, and a flexible DC-Coupled Mixer)
Sample & Hold
Analogue Voltage Controlled Amplifier
24-Point Patch Bay (3.5 mm)
1 Octave Keyboard w/ Glide and Scaling
Protective Cover Included
Patch Cables Included
3.5mm Output

IN THE BOX

Mavis PCB
Front Panel
Bottom Enclosure
Protective Cover
Calibration Tool
Nut Driver
12 volt DC Power Supply

Video: https://youtu.be/v2GmEod1JAM

Product Specs

Item Number: 23578
Make: Moog
Model: Mavis
Condition: Brand New
Finish: Black
Categories: keyboards-and-synths ⇒ analog-synths
Function: Synth Voice Envelope Generator Filter Oscillator VCA Waveshaper LFO Sample and Hold
Made In: China
MPN: MOOG-MODWKMAVISU
UPC: 040232557811
Modular Grid: Eurorack ⓘ ＋
Dimensions*: 44 HP 26 mm deep
Power*: 175 mA +12V 0 mA -12V 0 mA 5V

* User contributed details
